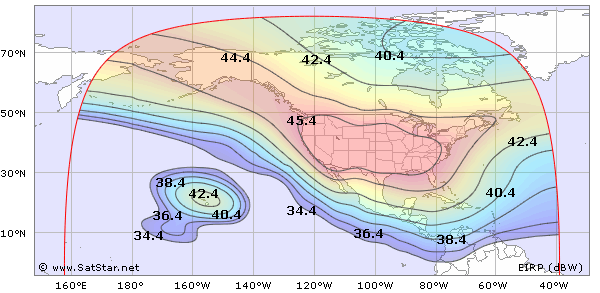

North America H Beam

The North America H beam is available on Galaxy 31 at 121.0°W. If you would like to have more technical information about TV and radio channels available on Galaxy 31 at 121.0°W, please click here. All EIRP values are based on official information from the satellite owner. Some signals can have either higher or lower EIRP values than indicated below. All dish sizes are approximate.


If you complete the BeamFinder Setup, your position will be indicated in the maps below.

Dish Size Estimate (C-band)
EIRP (dBW) <26 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 >42
Min (cm) >570 505 450 400 360 320 285 255 225 200 180 160 145 125 115 100 90 80 80
Max (cm) 640 570 505 450 400 360 320 285 255 225 200 180 160 145 125 115 100

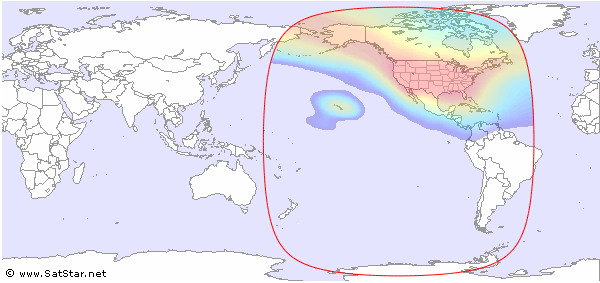

Global View
