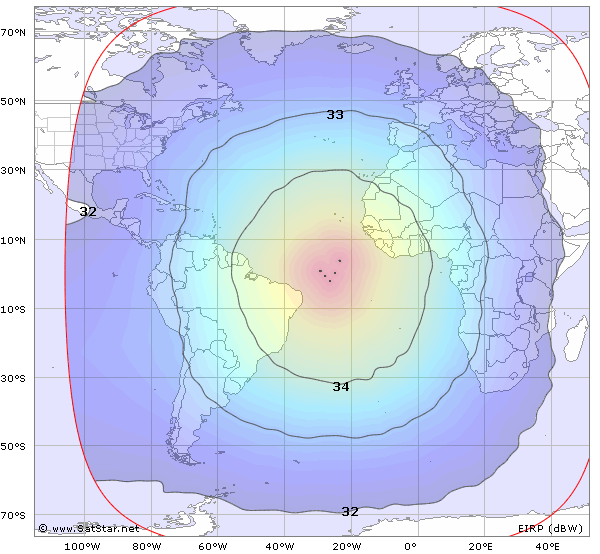

The Global A R beam is available on Intelsat 905 at 24.5°W. If you would like to have more technical information about TV and radio channels available on Intelsat 905 at 24.5°W, please click here. All EIRP values are based on official information from the satellite owner. Some signals can have either higher or lower EIRP values than indicated below. All dish sizes are approximate.
If you complete the BeamFinder Setup, your position will be indicated in the maps below.
 |
| Dish Size Estimate (C-band) | ||||||||||||||||||||
| EIRP (dBW) | <26 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 | 41 | 42 | >42 | |
| Min (cm) | >570 | 505 | 450 | 400 | 360 | 320 | 285 | 255 | 225 | 200 | 180 | 160 | 145 | 125 | 115 | 100 | 90 | 80 | 80 | |
| Max (cm) | 640 | 570 | 505 | 450 | 400 | 360 | 320 | 285 | 255 | 225 | 200 | 180 | 160 | 145 | 125 | 115 | 100 | |||

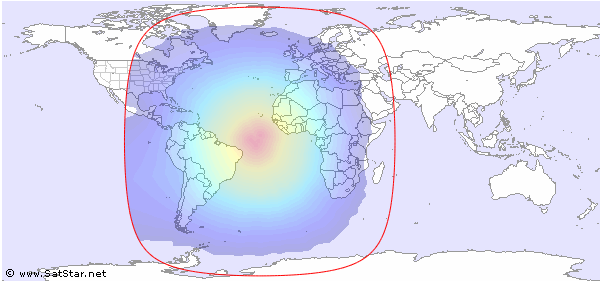

Global View
 |
