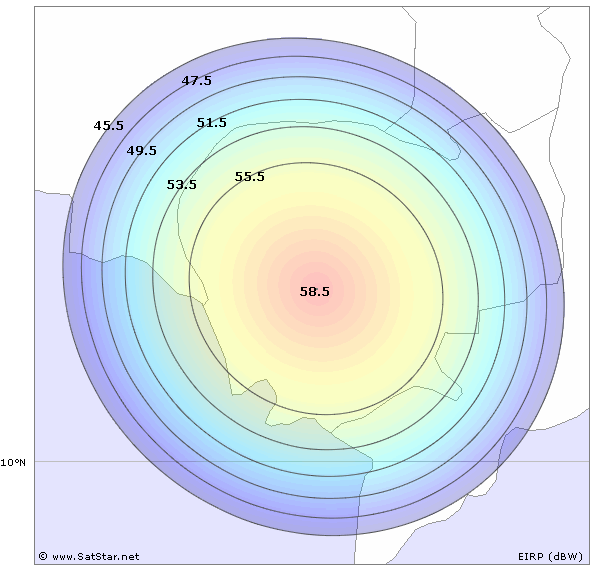

The SP208 - Cambodia V beam is available on Thaicom 4 at 119.5°E. If you would like to have more technical information about TV and radio channels available on Thaicom 4 at 119.5°E, please click here. All EIRP values are based on official information from the satellite owner. Some signals can have either higher or lower EIRP values than indicated below. All dish sizes are approximate.
If you complete the BeamFinder Setup, your position will be indicated in the maps below.
Dish Size Estimate (Ku-band) | ||||||||||||||||||||||||
EIRP (dBW) | <30 | 30 | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 | 41 | 42 | 43 | 44 | 45 | 46 | 47 | 48 | 49 | 50 | >50 | |
Min (cm) | >535 | 475 | 425 | 380 | 335 | 300 | 270 | 240 | 215 | 190 | 170 | 150 | 135 | 120 | 105 | 95 | 85 | 75 | 65 | 60 | 55 | 50 | 50 | |
Max (cm) | 600 | 535 | 475 | 425 | 380 | 335 | 300 | 270 | 240 | 215 | 190 | 170 | 150 | 135 | 120 | 105 | 95 | 85 | 75 | 65 | 60 |

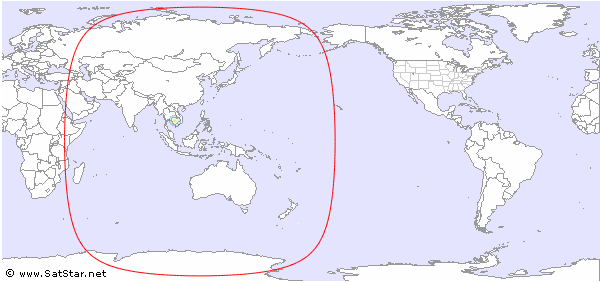

Global View
