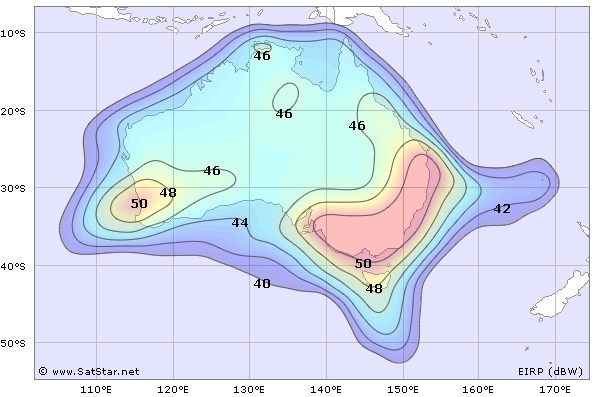

Australia B H Beam

The Australia B H beam is available on Optus C1 at 156.0°E. If you would like to have more technical information about TV and radio channels available on Optus C1 at 156.0°E, please click here. All EIRP values are based on official information from the satellite owner. Some signals can have either higher or lower EIRP values than indicated below. All dish sizes are approximate.


If you complete the BeamFinder Setup, your position will be indicated in the maps below.

Dish Size Estimate (Ku-band)
EIRP (dBW) <30 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 >50
Min (cm) >535 475 425 380 335 300 270 240 215 190 170 150 135 120 105 95 85 75 65 60 55 50 50
Max (cm) 600 535 475 425 380 335 300 270 240 215 190 170 150 135 120 105 95 85 75 65 60

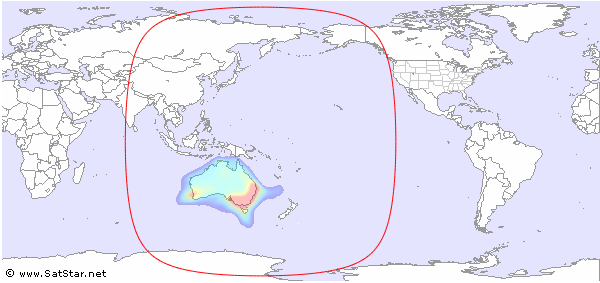

Global View
